ELECTRO-VOICE F.01U.170.823
Live X passive loudspeakers features signature EV low-frequency and matched titanium high frequency drivers. Black wood cabinets create real stage presence with input and output connectivity to simplify set-up. Simple pole-mount or stacking options allow for versatile sound reinforcement applications.

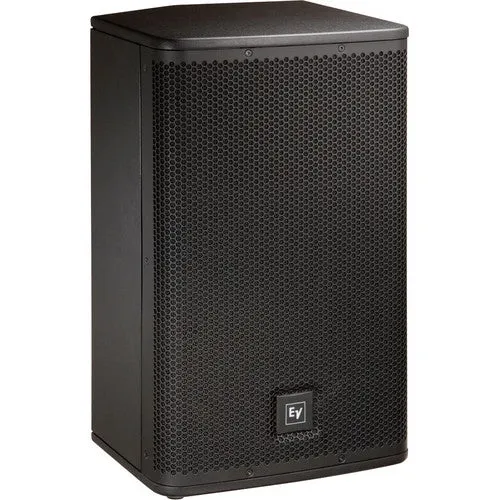

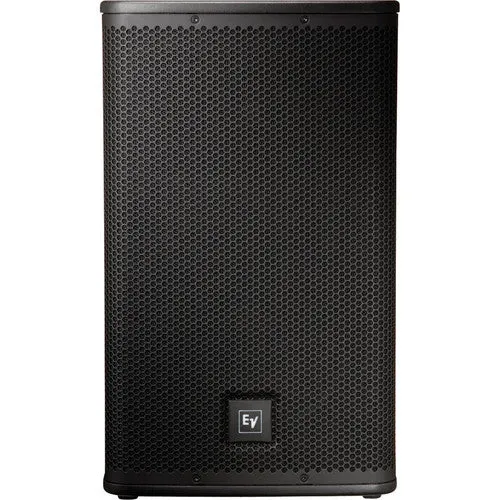

ELX112 – 12" Two-Way Passive Loudspeaker
The versatile ELX112 loudspeaker is a compact, powerful choice with real stage presence, for sound reinforcement and stage monitoring applications.
- Compact power for sound reinforcement and stage monitoring

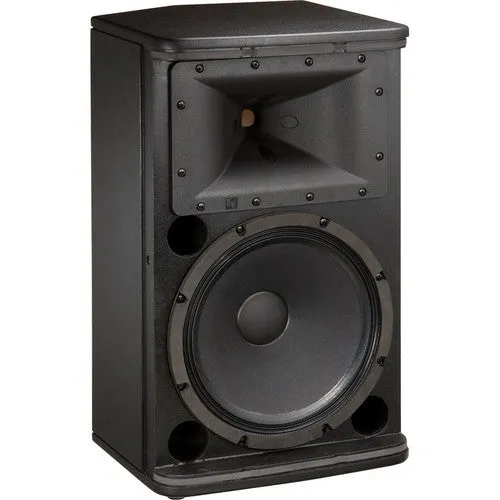

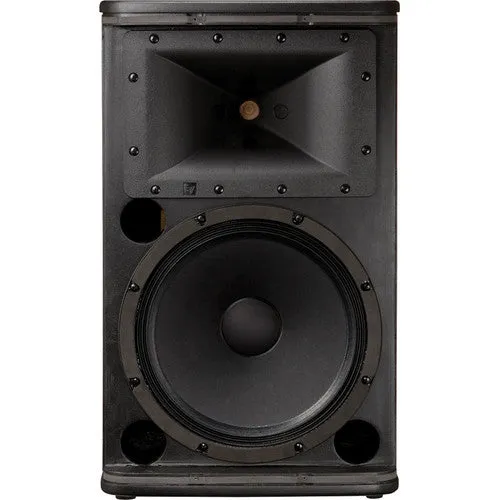

- EVS-12K woofer
- 1.5-inch DH-1K titanium HF compression driver
- 55 Hz – 20 kHz frequency range
- 90° x 50° coverage-pattern waveguide

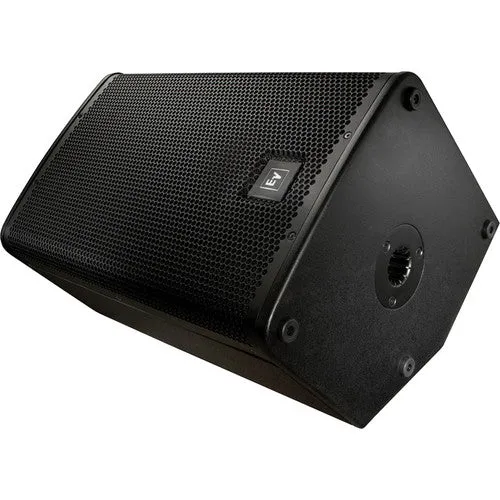

- 60° Monitor Angle
- 94 dB SPL sensitivity; 132 dB max SPL
- Power handling: 250 W continuous, 1000 W peak
- Braced 15mm plywood enclosure
- Pole mount or stack with Live X Subwoofers
- Black textured finish
| Axial Sensitivity (SPL, 1 W @ 1 m) | 94 dB |
| Case Material | 9-ply, 15mm Plywood, Internally Braced, with Texured Paint |
| Color | Black |
| Speaker Type | Full-range, two-way, wedges |
| Woofer Size | 304.8 mm (12") |
| Frequency Response (-10 dB) | 55 - 20000 Hz |
| Internal Crossover | Yes |
| Recommended High-Pass Frequency | 45 Hz |
| Max. SPL/1m (calc) | 132 dB Half Space |
| Coverage (Nominal -6 dB) H | 90 ° |
| Coverage (Nominal -6 dB) V | 50 ° |
| System Power Handling (Continuous/Program/Peak) | 250, n/a, 1000 Watts |
| LF Transducer | (1) EVS-12K, 305mm (12") Woofer |
| HF Transducer | DH-1K, 39mm (1.5") Titanium Diaphragm Compression Driver |
| Crossover Frequency | 21000 Hz |
| Nominal Impedance (Passive) | 8 Ω |
| Minimum Impedance | 7 Ω |

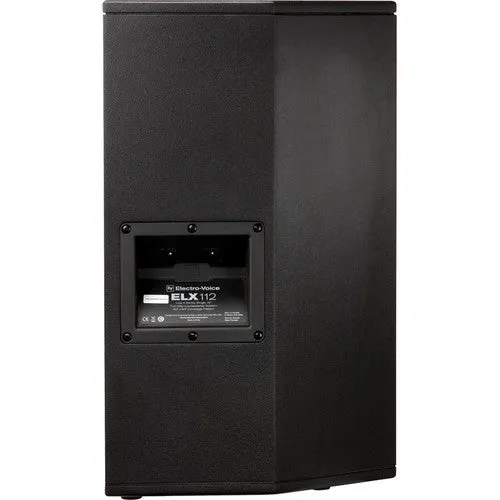

| Connector Type | Parallel Neutrik® NL4 |
| Grill | 18GA Steel with Black Powdercoat |
| Height | 607 mm (23.9") |
| Width | 362 mm (14.25") |
| Depth | 340 mm (13.39") |
| Weight Net | 16 kg (35.27 lbs) |
